TrackScan-Sharp Optik 3B Ölçüm Sistemi

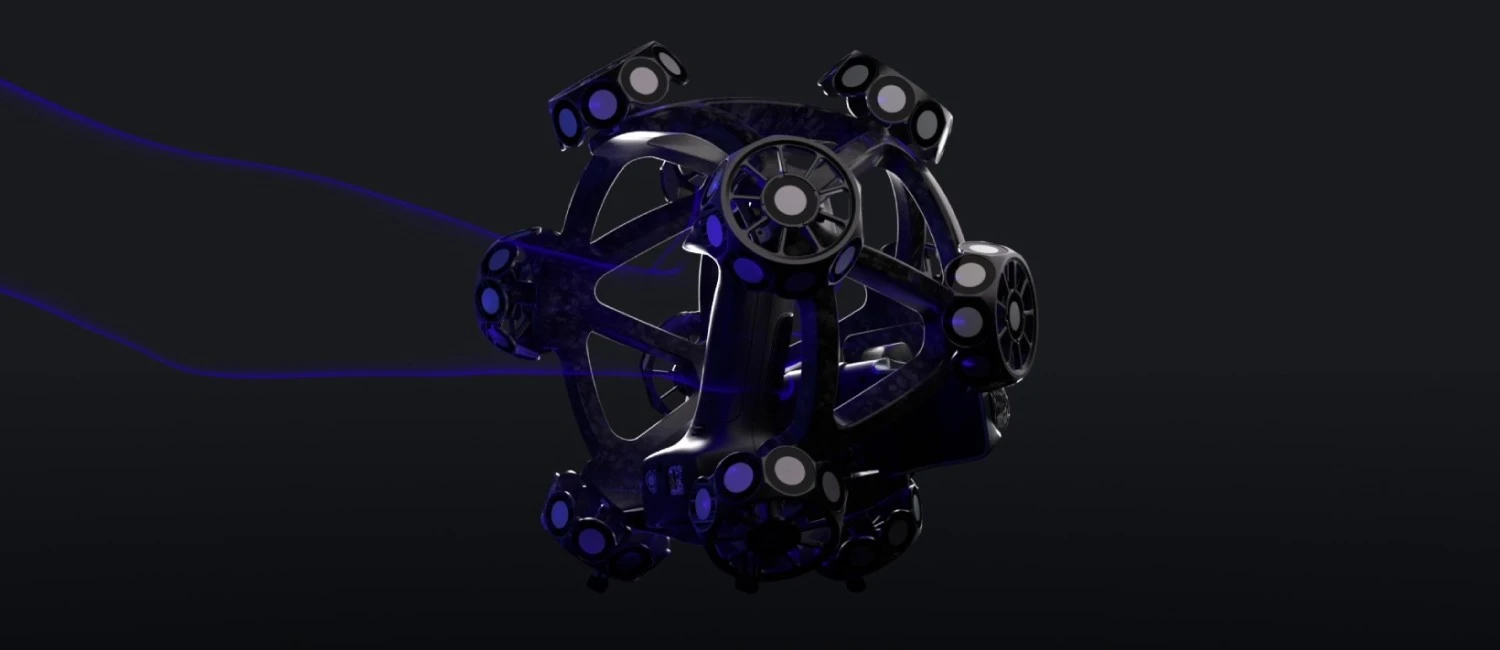

25 megapiksel endüstriyel kameralar ve güçlü dahili işlemcilerle (edge computing destekli) tasarlanan TrackScan Sharp, büyük ölçekli parçaların uzun mesafeden yüksek hızda ölçülmesi için özel olarak geliştirilmiştir. 8,5 metreye kadar takip mesafesi ve 135 m³ yüksek hassasiyetli ölçüm aralığı sunarak optik ölçüm teknolojisini yeni bir seviyeye taşır ve güçlü ölçüm deneyimleri sağlar. Sistem, 99 lazer çizgisi ve saniyede 4,86 milyon ölçüm hızı gibi üstün performans özellikleriyle yüksek doğruluk ve güvenilir sonuçlar sunar.
Ayrıca, Scantech’in üçüncü nesil akıllı ve kablosuz 3D tarama teknolojisi olan TrackScan Sharp, tamamen batarya ile çalışır ve kablosuz veri aktarımını destekler. Bu özellik, kullanıcıları kablo kısıtlamalarından kurtarır ve her ortamda kesintisiz tarama imkânı sağlar.
Dahili İşlemci
CFFIM Teknolojisi ile Stabil Yapı
135-m³ 8,5-m İzleme
4.860.000 Ölçüm/sn
99 Mavi Lazer Çizgisi
25 MP Kamera
Kablosuz ve Kolay 3B Tarama
Sistemin hem 3D tarayıcısı hem de optik takip ünitesi, güçlü dahili işlemcilerle gerçek zamanlı görüntü ve veri işleme yapar ve 3B koordinatları anında üretir. Entegre bataryalar ve harici kablosuz ağ kartları (WNIC) ile kullanıcıların nesneleri tamamen kablosuz ölçmesini sağlar.
Tak-Çalıştır Özelliği
Sistem, açıldığında otomatik olarak bağlanır, karmaşık ayarlara gerek kalmadan hemen taramaya başlar.
Kullanıcı Dostu Kullanım
Kullanımı kolay butonları sayesinde esnek ve özgür 3B tarama deneyimi sunar.
Hassas Detay Yakalama
Sistemin 17 paralel lazer çizgisiyle desteklenen ince tarama modu, geniş alanlarda hızlı nokta bulutu oluşturmayı mümkün kılar. Bu özellik, kullanıcıların slotlar, köşeler gibi karmaşık detayları yüksek hassasiyet ve hızla yakalamasına olanak sağlar. Sonuç olarak, parçalar 3B olarak titizlikle temsil edilir ve doğru, kapsamlı dijital modeller oluşturulur.
TrackScan Sharp-S Teknik Özellikler
| Type | TrackScan Sharp-S | |
| Scan mode | Ultra-fast scanning | 81 blue laser lines (Triple Cross Technology) |
| Hyperfine scanning | 17 blue parallel laser lines | |
| Deep-hole scanning | Extra 1 blue laser line | |
| Accuracy(1) | up to 0.025 mm | |
| Measurement rate up to | 4,860,000 measurements/s | |
| Scanning area up to | 800 mm × 700 mm | |
| Laser class | ClassⅡ (eye-safe) | |
| Resolution up to | 0.02 mm | |
| Volumetric accuracy(2) | 10.4 m³ (3.5 m) | 0.048 mm |
| 35 m³ (5.2 m) | 0.069 mm | |
| 90 m³ (7.2 m) | 0.128 mm | |
| 135 m³ (8.5 m)(3) | 0.159 mm | |
| Volumetric accuracy (with MSCAN photogrammetry system) | 0.044 mm+0.012 mm/m | |
| Stand-off distance | 300 mm | |
| Depth of field | 400 mm, 800 mm (Large depth of field) | |
| Output format | .stl, .pj3, .igs, .asc and etc., customized | |
| Operating temperature range | -10–40 °C | |
| Operating humidity range (non-condensing) | 10 ~ 90% RH | |
| Interface mode | USB 3.0, Network Interface | |
| Certification | CE, Rohs, WEEE, FCC | |
| Patents | CN109000582B, CN110992393B, CN111678459B, CN111694665B, CN112802002B, CN112867136B, CN112964196B, CN113188476B, CN113340234B, CN113432561B, CN113473034B, CN113514008B, CN113766083B, CN114001696B, CN114205483B, CN114554025B, CN114627249B, CN115289974B, CN115325959B, CN115493512B, CN115511688B, CN115661369B, CN115690333B, CN115695763B, CN116136396B, CN116206069B, CN116244730B, CN209263911U, CN210567185U, CN211121096U, CN214149174U, CN218103220U, CN218103238U, CN218411072U, CN218584004U, CN218734448U, CN219829788U, CN219834226U, CN307756797S, EP3392831B1, EP3907702B1, KR102096806B1, US10309770B2, US11060853B2, US11493326B2 | |
| Hole position accuracy | 0.05 mm | |
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.
(2) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
(3) The industrial-grade high-precision measurement range of TrackScan Sharp-S is up to 135 m³, and its scanning range is up to 233 m³.
*Our company reserves the right to interpret and modify the parameters and images in this manual within the scope of law.
TrackScan Sharp-E Teknik Özellikler
| Type | TrackScan Sharp-E | |
| Scan mode | Ultra-fast scanning | 81 blue laser lines (Triple Cross Technology) |
| Hyperfine scanning | 17 blue parallel laser lines | |
| Deep-hole scanning | Extra 1 blue laser line | |
| Accuracy(1) | up to 0.025 mm | |
| Measurement rate up to | 4,860,000 measurements/s | |
| Scanning area up to | 800 mm × 700 mm | |
| Laser class | ClassⅡ (eye-safe) | |
| Resolution up to | 0.02 mm | |
| Volumetric accuracy(2) | 10.4 m³ (3.5 m) | 0.049 mm |
| 35 m³ (5.2 m) | 0.070 mm | |
| 90 m³ (7.2 m) | 0.130 mm | |
| Volumetric accuracy (with MSCAN photogrammetry system) | 0.044 mm+0.012 mm/m | |
| Stand-off distance | 300 mm | |
| Depth of field | 400 mm, 800 mm (Large depth of field) | |
| Output format | .stl, .pj3, .igs, .asc and etc., customized | |
| Operating temperature range | -10–40 °C | |
| Operating humidity range (non-condensing) | 10 ~ 90% RH | |
| Interface mode | USB 3.0, Network Interface | |
| Certification | CE, Rohs, WEEE, FCC | |
| Patents | CN109000582B, CN110992393B, CN111678459B, CN111694665B, CN112802002B, CN112867136B, CN112964196B, CN113188476B, CN113340234B, CN113432561B, CN113473034B, CN113514008B, CN113766083B, CN114001696B, CN114205483B, CN114554025B, CN114627249B, CN115289974B, CN115325959B, CN115493512B, CN115511688B, CN115661369B, CN115690333B, CN115695763B, CN116136396B, CN116206069B, CN116244730B, CN209263911U, CN210567185U, CN211121096U, CN214149174U, CN218103220U, CN218103238U, CN218411072U, CN218584004U, CN218734448U, CN219829788U, CN219834226U, CN307756797S, EP3392831B1, EP3907702B1, KR102096806B1, US10309770B2, US11060853B2, US11493326B2 | |
| Hole position accuracy | 0.05 mm | |
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.
(2) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
(3) The industrial-grade high-precision measurement range of TrackScan Sharp-E is up to 90 m³, and its scanning range is up to 125 m³.
*Our company reserves the right to interpret and modify the parameters and images in this manual within the scope of law.
TrackScan Sharp49 Teknik Özellikler
| Type | TrackScan-Sharp 49 | |
| Scan mode | Ultra-fast scanning | 21 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines | |
| Deep-hole scanning | 1 blue laser line | |
| Accuracy(1) | Up to 0.025 mm (0.0009 in) | |
| Measurement rate up to | 2,600,000 measurements/s | |
| Scanning area up to | 500 mm × 600 mm (19.7 in × 23.6 in) | |
| Laser class | ClassⅡ (eye-safe) | |
| Resolution up to | 0.020 mm (0.0008 in) | |
| Volumetric accuracy(2) | 10.4 m³ (Tracking distance 3.5 m) | 0.049 mm (0.0019 in) |
| 28.6 m³ (Tracking distance 5.0 m) | 0.067 mm (0.0026 in) | |
| 49.0 m³ (Tracking distance 6.0 m) | 0.089 mm (0.0035 in) | |
| Tracking Distance per i-Tracker | 6000 mm (236.2 in) | |
| Volumetric accuracy (with MSCAN photogrammetry system) | 0.044 mm + 0.012 mm/m (>6m) (0.0017 in + 0.00014 in/ft) |
|
| Hole position accuracy | 0.050 mm (0.0020 in) | |
| Camera pixels of i-Tracker | 25 MP | |
| Stand-off distance | 300 mm (11.8 in) | |
| Depth of field | 400 mm (15.7 in) | |
| Part size range (recommended) | 0.1 m-12 m (3.9 in-472.4 in) | |
| Operating temperature range | 0 °C-45 °C (32℉-113℉) | |
| Operating humidity range (non-condensing) | 10-90 % RH | |
| Interface mode | USB 3.0, Network Interface | |
| Certification | CE, RoHS, WEEE | |
| Patents | CN106500627B, CN106500628B, CN206132003U, CN204854633U, CN204944431U, CN204902788U, CN204963812U, CN204902785U, CN106403845B, US10309770B2, CN204854633U, CN105068384B, CN105049664B, CN106403845B, CN214375417U, CN214379242U, CN214379241U, CN214149174U, CN109000582B, CN112802002B, CN210567185U, CN211121096U,C N114001671B, CN114001696B, CN114554025B, CN114205483B, US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, CN218411072U, CN115325959B, CN218103238U, CN218103220U, CN114627249B, US11493326B2, CN115695763B, CN307756797S, CN218584004U | |
